4CH H.264 NVR System 4 CH-1080P NVR

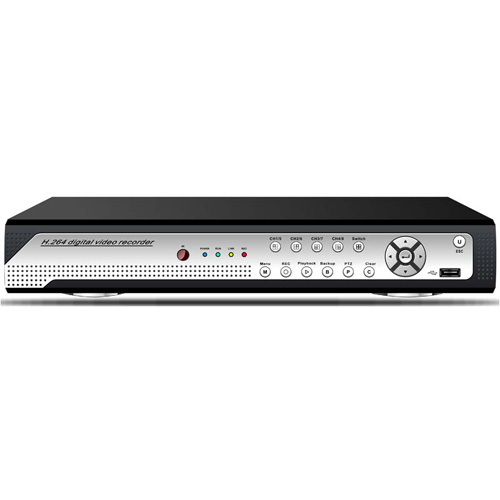

4CH H.264 NVR System 4 CH-1080P NVR NVR-9104V

Features

  • Built P2P server internet penetration, without cumbersome set
  • Built-in digital and analog mode can be used with select
  • 264 High Profile compression format
  • Built ONVIF protocol, can support ONVIF IP camera
  • Support HDMI/VGA video output
  • Support PIP and PAP function
  • Support audio input/output, voice intercom function
  • Support web browsers and mobile APP remote access
  • Support live and playback digital zoom function
  • Support host automatic maintained restart
  • Password protection, user management permissions
  • Support multiple network protocols
  • Support push alarm function
  • Built-in multiple languages
Add Cart

Model NVR-9104V
System Main Chip System Hisilicon series Chip
System Resources Multiplex Live/Record/Playback/Network/Backup
Interface User Interface 16bit color GUI, support mouse/remote control/panel operation
Display 1/4/8/9
Video Video Frame Rate PAL: 1~25 fps/sec,NTSC: 1~30 fps/sec
Video Compression H.264 Main Profile
HDMIOutput 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768
VGAOutput
Playback Quality 1080P/ 720P/ 960H/ D1
Compression Resolution 4CH/1080P/25fps
Decoding Resolution
Hybridy Mode Built-in multiple channel mode, the user can choose
Motion Detection Each channel can be set 192(16x12) zone
Audio Audio Compression ADPCM
Voice Talk Support
Recording Playback Recording Mode Manual/Alarm/Motion/Timing
Local Playback 4CH
Each channel can be individually playback different time data
Video Query Time/Log/Channel/Event
Storage Backup Storage HDD/Network
Backup Mode Network/USB device
Video Output VGA/HDMI
Audio Output 1xRCA  (200~3000mV / 5kΩ)
Network Port 1xRJ45 10M/100M
Serial Port RS485, Support multiple PTZ protocols
Voice Talk Input Support channel-1
Alarm Input Option (4CH Input)
Alarm Output Option (1CH Output)
USBPort 2xUSB2.0
E-SATAPort N/A
HDD Port 2xSATA
Each SATA support 4T HDD
Other Power DC12V/4A-50~60HZ
Consumption ≤15W
Working Temperature -10°C~+55°C (14°F~131°F)
Work Humidity 10% ~ 90%
Dimension (WxLxH) 335x250x50
Weight(without HDD) 1.6Kg

※ Design and specifications are subject to change without notice
