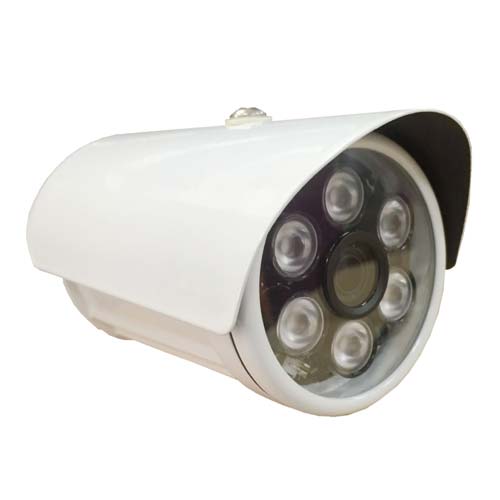

1.3M H.264 P2P Network IP Camera 6pcs Big IR LED Metal Case Bullet Camera

1.3M H.264 P2P Network IP Camera 6pcs Big IR LED Metal Case Bullet Camera IP-YM513

Features

  • 960P/720P Wide-Dynamic Low Illumination CMOS
  • Support P2P, Plug & Play, No need for DDNS, No need for Port Mapping and no need for Static IP
  • Support IE Browser for Internet Monitoring
  • Support Standard ONVIF Protocol
  • Built-in Automatic IR Cut Filter (ICR)
  • Support Dual-Stream Function, Network Bandwidth Adaptive Function
  • Support Multiple Network Protocols
  • Support Multi-User Online Monitoring at the same time
  • Support AE sensitivity can be adjusted
  • Support Motion Detection, Image Loss Alarm Function
  • Support Exposure Mode, Backlight Compensation, Automatic Gain
  • Support Day/Night Digital Nosie Reduction Function
  • Support Digital Zoom Camera Function
  • Support Mobile Phone Monitoring (Android / IOS)
  • Support FTP and Automatic Maintenance Function
  • Support Multiple Languages
Add Cart

Model No. IP-YM513
Main Chip HIS3518E V201
Image Sensor Aptina 0130
Day&Night Switch Built-in ICR Automatic Switching
Shutter 1/25 ~ 1 / 10,000 sec
White Balance Auto
BLC Support Backlight Compensation
Digital Noise Reduction Support 3D Digital Noise Reduction
Wide Dynamic N/A
Motion Detection Support Motion Detection
Masking Area N/A
Mirroring Support
OSD Menu Support OSD Settings, free to move the position on the screen
System Maintenance System Maintenance
Compression Format H.264
Main Stream (Highest) 1280x960
Sub Stream (Highest) 704x576
Third Stream (highest) N/A
Frame Rate PAL: 25fps / NTSC: 30fps (60Hz)
Bit Rate 64Kbps ~ 12Mbps CBR / VBR adjustable
Image Adjustment Brightness, Saturation, Color, Contrast, Sharpness
Ethernet Port RJ45 Port 10 / 100M  Base-T
Wireless Network Card N/A
Network Protocol HTTP / TCP / IP / IPv4 / UPNP / RTSP / UDP / SMTP / NTP / DHCP / DNS / IP Filter / PPPoE / DDNS / IP Search
ONVIF protocol Support ONVIF protocol
Maximum Users At the same time can support 5 users login
Client iPhone / iPad / Android / Windows
Audio Compression Format G711a

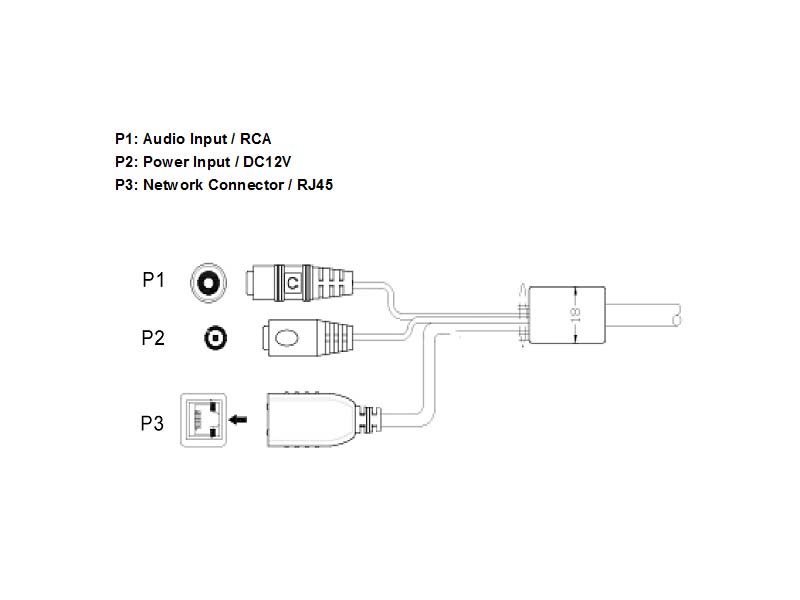

Aduio Input Support 1 Channel Audio Input, RCA
Alarm Input / Output N/A
POE Optional
Lens Standard: 4 mm, Optional: 3.6 / 6 / 8 / 12mm
IR LEDs/ Distance 6 Arrary IR LED, Distance: 35 ~ 40M
Material / Color Metal Material / Beige
Working Environment -10°C ~ 60°C
Waterproof  IP66
Power Supply DC12V ± 10%
Dimensions Φ85x140 mm
Net Weight 750g


※  Design and specifications are subject to change without notice
