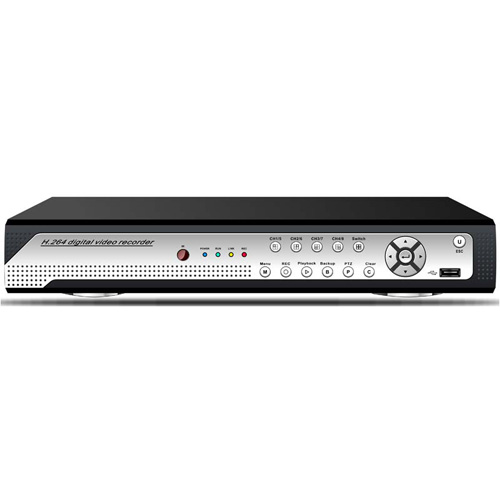

4CH H.264 Hybird DVR 4 CH-1080P TVI/AHD/CVI 16CH-1080P NVR

4CH H.264 Hybird DVR 4 CH-1080P TVI/AHD/CVI 16CH-1080P NVR DVR-9904H

Features

  • Built-in Cloud Server, P2P Network Penetration without cumbersome settings
  • Built-in Digital and Analog modes which can be selected
  • The Latest H.264 High Profile Compression Format, Support Dual Stream Settings
  • Built-in standard ONVIF protocol, can support ONVIF network camera docking
  • Support Audio Input / Output, voice intercom function
  • Built-in Hard Disk Partition, Motion Detection, Hard Disk Mirroring Function
  • Support for HDMI / VGA images and user interface at the same time output
  • Support Multiple Web Browsers and Remote Links of Android / iPhone Platform
  • Support UTC Remote Control
  • Support Monitoring & Playback Digital Zoom Function
  • Support Automatic Maintenance, Restart, File Deletion
  • Password Protection, User Management Authority Settings, Network Blacklist Settings
  • Built-in Multi-language
Add Cart

Model DVR-9904H
System Main Chip System Hisilicon series Chip
System Resources Multiplex Live/Record/Playback/Network/Backup
Interface User Interface 16bit color GUI, support mouse/remote control/panel operation
Display 1/4
Video Video Compression H.264 Main Profile
HDMIOutput 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768
VGAOutput
Playback Quality 1080P/ 720P/ 960H/ D1
Compression Resolution TVI/AHD/CVI 4CH/1080P/15fps
Decoding Resolution
Hybridy Mode Built-in multiple channel mode, the user can choose
Motion Detection Each channel can be set 192(16x12) zone
Audio Audio Compression G711A
Voice Talk Support
Recording Playback Recording Mode Manual/Alarm/Motion/Timing
Local Playback 4CH
Each channel can be individually playback different time data
Video Query Time/Log/Channel/Event
Storage Backup Storage HDD/Network
Backup Mode Network/USB device
External Interface Video Input 4xBNC
Video Output VGA/HDMI
Audio Input 4xRCA
Audio Output 1xRCA  (200~3000mV / 5kΩ)
Network Port 1xRJ45 10M/100M
Serial Port RS485
Voice Talk Input Support channel-1
Alarm Input Option (4CH Input)
Alarm Output Option (1CH Output)
USBPort 2xUSB2.0
E-SATAPort N/A
HDD Port 2xSATA
Each SATA support 6TB HDD
Other Power DC12V/4A-50~60HZ
Consumption ≤15W
Working Temperature -10°C~+55°C (14°F~131°F)
Work Humidity 10% ~ 90%
Dimension (WxLxH) 335x250x50 mm
Weight(without HDD) 1.6Kg




Standard

Model

Modem ID

Diag IF

Ctrl IF

WCDMA

E3131

12d1:1001

TtyUSB0

TtyUSB1

EVDO

EC1261

12d1:1001

TtyUSB0

TtyUSB1

WCDMA

E173

12d1:1001

TtyUSB0

TtyUSB1

WCDMA

E177

12d1:1001

TtyUSB0

TtyUSB1

WCDMA

E352B

12d1:1001

TtyUSB0

TtyUSB1

EVDO

EM660

12d1:1001

TtyUSB0

TtyUSB1

WCDMA

E176G

12d1:1001

TtyUSB0

TtyUSB1

WCDMA

E176G

12d1:1003

TtyUSB0

TtyUSB0

WCDMA

EM770W

12d1:1404

TtyUSB0

TtyUSB1

WCDMA

E1550

12d1:140C

TtyUSB0

TtyUSB3

WCDMA

MU609

12d1:1560

TtyUSB0

TtyUSB2

WCDMA

MU609_NEW

12d1:1573

TtyUSB2

TtyUSB1

WCDMA

MF190

19d2:0117

TtyUSB2

TtyUSB1

EVDO

MC2716

19d2:ffed

TtyUSB0

TtyUSB1

EVDO

AC582

19d2:fff1

TtyUSB0

TtyUSB1

EVDO

C5300

1c9e:9e00

TtyUSB0

TtyUSB4

WCDMA

U6300V

1c9e:9603

TtyUSB2

TtyUSB1

TD-SCDMA

T5300
