2M/1080P AHD/TVI/CVI SONY Sensor 24pcs IR LED Metal Dome Camera

2M/1080P AHD/TVI/CVI SONY Sensor 24pcs IR LED Metal Dome Camera TC-KM720

Features

  • 2 Megapixel Color CMOS
  • Advanced Bright Color Separation, Signal Filtering, 3D Noise Reduction Technology
  • AHD Video Output, No Delay& Images Lossless, Long Distance Transmission
  • Built-in IR-Cut Filter, Low Illumination, Auto Color to Black, Day&Night Monitoring
  • Built-in Digital Wide Dynamic, Strong Light Suppression, Motion Detection, Privacy Mask
  • Standard AHD / TVI / CVI Encoding Compression Format, Compatible with Major Brands' DVR
  • Compatible with 1080P / 720P / 960H / D1 Switching output
  • Coaxial Transmission Distance can be up to 500 Meters
  • Support UTC Control
  • Support 2DNR / 3DNR
  • Support NTSC / PAL System
  • Support Multi-Language
Add Cart

Model TC-KM720
Image Sensor Sony IMX323
Minimum Illumination 0.01Lux/F1.2 AGC ON / 0.001Lux/F1.0 with IR
Resolution 1920 (H) x1080 (V) / 1080P
Effective Pixels Auto, 1/50(60)~1/100,000sec
SNR ≥ 50dB
System NTSC/PAL
Video Output AHD/TVI/CVI/CVBS
AGC Level 10~15
D-WDR OFF/ON(Level 10~8) / Auto
S/N More than 58db (AGC OFF)
Day/Night Mode ICR automatic switch
Motion Detection Area 4 area
Masking Area 1~15 area
White Balance ATW/ AWC-SET/ indoor/ outdoor/ Manual
Mirror Vertical/ Level/ Vertical+Level/ OFF
Digital Noise 2DNR/ 3DNR
BLC/ HLC Support
UTC Support
IR LEDs/ Distance 24pcs IR LED / 25~30M
Lens Standard: 4.0mm/ Optional: 6.0/8.0mm
Working Environment -100C~500C RH85%
Working Humidity < 90%
Waterproof N/A

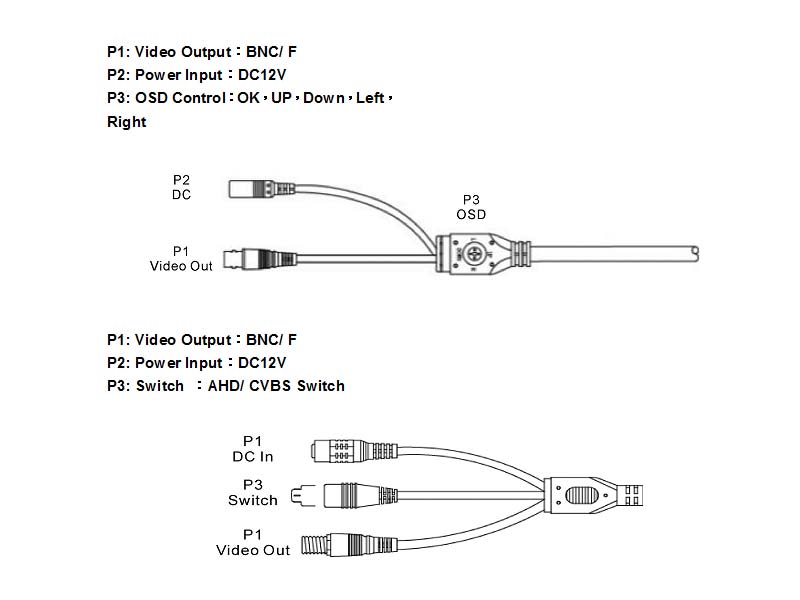

Cable DC/BNC/Switch
Power Supply DC12V±10%
Dimensions Φ92x85 mm
Weight 750g

※  Design and specifications are subject to change without notice
